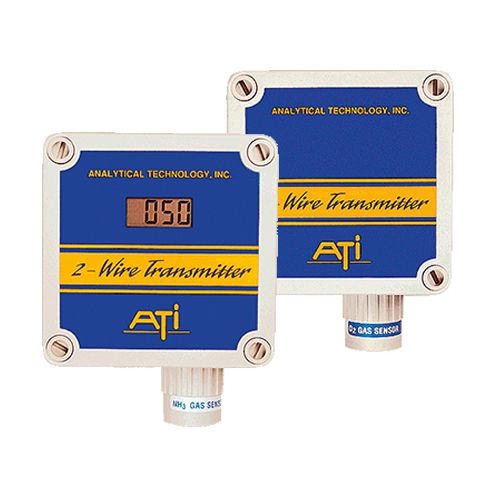

Formaldehyde (CH2O) fixed gas detector - B12

Formaldehyde, formol or methanal (CH2O) detection

Formaldehyde – as well as benzene and carbon dioxide – is the purpose of a very strict regulation regarding allowed concentrations in public access buildings (PAB). This colorless gas features a suffocating smell, is soluble into water and has been classified since 2015 as a proven carcinogenic agent.

Particularly well-suited for detecting formaldehyde (CH2O) – also known as formol or methanal -  B12 fixed gas detecor features a 4-20 mA linear ouput with more or less 5% accuracy and an optional digital display. Its enclosure is made of polystyrene, making this fixed gas detector waterproof and corrosion-resistant.

B12 formaldehyde detector assets

• 2-wire analog transmitter with 4-20 mA linear output
• Optional measure display
• Pre-calibrated sensor resistant to corrosion and humidity
• Fast response time with good measure repeatability (± 1% of range)
• Minimal maintenance, once a year

B12 formaldehyde detector technical specifications

• Gas detector: formaldehyde (CH2O) also called formol, methanal or methyl aldehyde
• Low consumption: 2-wire transmitter
• Accuracy : ± 5% of the value (subject to calibration gas used to calibrate)
• Repeatability: ± 1% of measuring range
• Output: 4-20mA 2-wire
• Power supply: 12-28 Vdc
• Charging resistance: 675 ohms maximum under 24VDC
• Enclosure: NEMA 4X polystyrene, optional LCD display
• Settings: through potentiometer (zero and sensitivity) fixed on the electronic board
• Operating temperature: from 0 to +50°C
• Sensor material: Noryl

CH2O gas transmitter major applications

• Chemistry and petrochemistry, hydrocarbons, solvents, alcohol
• Indoor air quality monitoring in PAB (public access buildings)
• Houses, paints, varnish, insulation plates, wood treatment…
• Agri-food industry, food refinement, conservatives
• And even for tobacco smoke...
