MX32 gas controller (up to 8 transmitters)

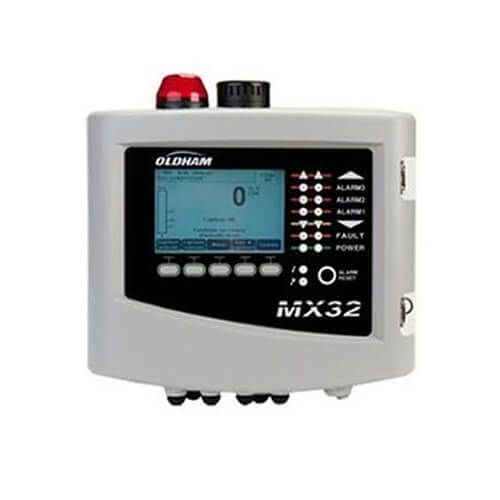

The MX32 gas controller

3 available versions

The MX32 gas controller is available in 3 versions to meet the greatest number of applications:

• MX32-1: Version 1 4-20 mA analog sensor or up to 4 digital sensors on the same line
• MX32-2: Version 2 4-20 mA analog sensors or up to 8 digital sensors distributed on 2 lines
• MX32-3: Version 2 Wheatstone bridge sensors OLC10 / 100 series for explosive gases detection only

Numerous modules for great flexibility

The Oldham MX32 controller accepts various modules to increase the system's capacities and flexibility.

• Addressable module with 8 analog inputs able to receive all types of 4-20 mA analog gas transmitters
• 4 or 8 relays addressable module (+ 2 logic inputs) that can be deported as close as possible to the controls.
• Addressable module with 16 digital inputs that can receive all digital information (emergency stop, limit switch, fire alarm).
• Addressable module with 4 analog outputs for connection to a recorder, a PLC, a building management system, etc.

MX32 gas controller main assets

• Up to 8 digital or analog gas detectors
• Large graphic LCD display and customizable views
• 5 alarm levels per measurement channel
• History of the last 512 events

MX32 controller technical specifications

• Function: Multi-channel alarm and measurement unit
• Capacity / number of sensors
  - Digital lines: 4 detectors per line, 2 lines max.
  - Analog lines: Linear inputs 4-20 mA, 2 lines max.
  - Wheatstone bridge lines: 2 lines maximum (OLC series)
• Dimensions: 265 x 266 x 196 mm - Protection index: IP55
• Power supply: 100-240 Vac 50-60 Hz or 21-28 Vdc, 92 W max
• Display: Backlit graphic LCD, user-customizable views, bargraph with alarm thresholds indications
• Status indicators: 7 LEDs for each of the 2 lines, 1 power-on indicator and 1 general fault indicator
• Alarms: 5 alarm levels per measurement channel
• Internal relays: 4 programmable potential-free changeover contact relays + 1 fault relay (not configurable)
• Digital output: RS485 Modbus Protocol (optional)
• Cable entry and exit: 5 PE M16 for cables from 4 to 8 mm² & 2 PE M20 for cables from 6 to 12 mm²
• Certifications:
  - SIL 1: according to EN50271: 10
  - EMC: according to EN 50270: 2015, industrial type 2
• Operating temperature: -20 to + 50 ° C
• Humidity: 5 to 95% non-condensing
