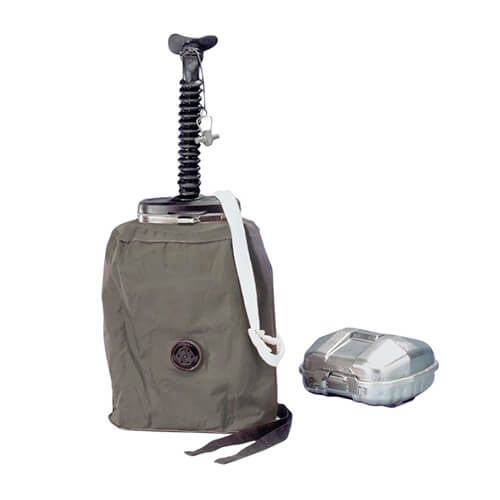

Oxygen self-rescuer mask with KO2 chemical oxygen - SSR 30/100
The SSR 30/100 self-rescuer mask which chemically generates oxygen is a chemical oxygen self-contained self-rescuer, emergency escape breathing device or EEBD which allows users to breathe in poorly oxygenated areas as well as in presence of fumes or hazardous toxic substances.
The SSR30/100 oxygen self rescuer can be activated in seconds and provides oxygen to its user when evacuating from the danger zone, or while waiting for rescue. Detailed description
The SSR 30/100 oxygen self-rescuer
The MSA SSR 30/100 self-rescuer with chemical oxygen generation is made for use in areas featuring potential abrupt eruptions of toxic gases or oxygen deficiency. These situations require immediate breathing protection and fastest possible donning of the self-rescuers or escape masks. The SSR 30/100 SCSR can be worn continuously on the belt or on the chest so that it is available immediately in hazardous situations.
This equipment uses proven principles of chemical oxygen generation: humidity and carbon dioxide from expired air produce a KO2 chemical reaction . While carbonic gas is fixed, oxygen is released in a breathing bag. The service life depends on the user's effort intensity and breathing flow rate.
SSR 30/100 self-contained self-rescuer technical specifications
- Principle of operation: regeneration of breathable air through KO2
- Flow principle: pendulum flow
- Duration:
- 20 min at 35 l/min in escape mode (K 20 S EN 13794:2003 class)
- 30 min at 30 l/min
- 100 min at 10 l/min (at rest) - Temperature class: T3
- Shelf life (for ambient temperatures between 0 °C and 50 °C) :
- 3 years: permanently worn device
- 5 years: stored device (possible extension up to 10 years) - Carrying mode :
- Belt version: SSR 30/100
- Harness version: SSR 30/100 B
2 versions of the SCSR SSR 30/100
Both versions of the SSR 30/100 (worn either on a belt or on the chest) are composed by a stainless steel housing that protects the self-rescuer device in the harshest environments.
SSR 30/100 self-rescuer belt version
- Dimension (in case): Height 18 cm, Width 18 cm, Depth 10 cm
- Weight (in case): 2 kg
- Weight (without case): 1,3 kg
SSR 30/100 self-rescuer harness version
- Dimension (in case): Height 18 cm, Width 18 cm, Depth 10 cm
- Weight (in case): 2.1 kg
- Weight (without case): 1,6 kg
Worldwide delivery
International delivery in compliance with international transport regulations (IATA, AMDG, ARD).
On demand "lithium" and "dangerous goods" regulated packaging.
