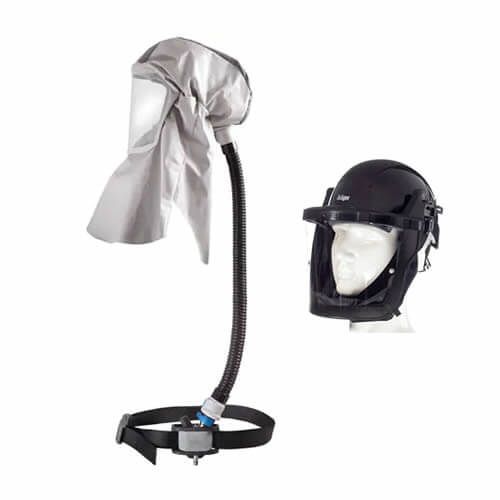

Constant flow airline respirator system SAR - X-plore 9300

X-plore 9300 constant air flow supplied air respirator

Adjustable and appropriate air flow

With a 3 to 10 bars inlet pressure and a patented air flow reducer, the X-plore 9300 supplied air respirator system covers a large range of usual industrial applications. This specific function can provide a continuous and sufficient air flow to the user, even in case of external air supply pressure variations. Moreover, these belts feature a secured flow adjustment in order to increase air flow, and as a consequence the comfort of the user.

A large range or facepieces

Each facepiece available for the X-plore 8000 supplied air respirator system is fully compatible with the X-plore 9300 - half-masks, full face masks, hoods and protective visors. Standards or reinforced flexible (optional) hoses also are available and compatible with the X-plore 9300.

Cost-effective maintenance

The X-plore 9300 supplied air respirator is easy to maintain and the cost of spare parts required to replace contaminated components is reduced. This enables to spare time and money as no particular cleaning is required.

X-plore 9300 technical specifications

• Materials specifications: Antistatic (approved for ATEX zone 1)
• Connector: Nickel platted brass
• Cover: Nylon 6/6
• Standard belt: Polyester
• Decontamination belt:

  Polyester with PTFE coating

  Leather belt: leather

• Weight:< 0.5 kg
• Standard air inlet connector: CEJN 96

  Other available connectors (option): Hensen HK, Hansen 3000,Foster, Schreader, Stäubli, Walther

• Size (L x H x w):
• Belt connector system 120 mm x 160 mm x 40 mm
• Operating temperature: -30°C to +60°C -10°C to +60°C
• Inlet pressure on user: 3 to 10 bar
• Flow: 200 to 1,200 L/min
• Alert whistle sound volume: > 90 dbA
• Required components:

  •Dräger X-plore® constant flow facepiece

  •Related breathing hose

  •Belt

• European certifications (EN): EN 14594:2005 Directive PPE 89/686/CEE
• Other certifications:

  AS/NZS 1716:2003, section 8

  Russia VNIIPO, GOST

  Japan JIS
