Airline respirator system on-demand flow - PAS X-plore

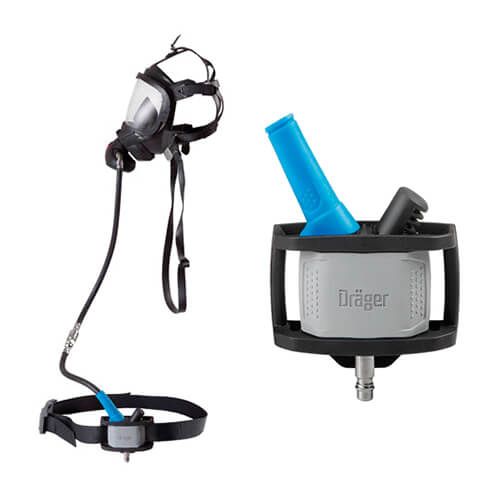

PAS X-plore airline respirator system

Adjustable and appropriate air flow

With an inlet pressure of 5 to 10 bar and a patented air flow reducer, the PAS X-plore supplied air respirator system covers a large range of industrial applications. This specific function can provide a continuous and sufficient air flow even in case of modification of the external air supply pressure. Moreover, these belts feature a secured flow adjustment in order to increase air flow and as a consequence the comfort of the user.

Cost-effective maintenance

The PAS X-plore supplied air respirator system is easy to maintain and the cost of spare parts required to replace contaminated components is reduced. Thus enabling spare time and money as no particular cleaning is required.

Accessories

FPS 7000 panoramic mask

The FPS 7000 full face mask sets standards for safety and comfort of use. Very ergonomic and available in different sizes, it provides optimal field of view and safe and comfortable adjustment.

Dräger PSS lung demand valve

Efficient in the harshest conditions when a respiratory protective equipment must be worn: once connected to a facepiece, the PSS can rotate (rotating connector) to fit the user’s movements.

PAS X-plore technical specifications

• Materials specifications: Antistatic (approved for ATEX zone 1)
• Connector: Nickel platted brass – Cover: Nylon 6/6
• Standard belt: Polyester
  Decontamination belt: Polyester with PTFE coating
  Leather belt: leather

• Weight: < 0.5 kg
• Standard air inlet connector: CEJN 96
• Other available connectors (option): Hensen HK, Hansen 3000, Foster, Schreader, Stäubli, Walther
• Taille (L x H x l):
• Belt connector system 120 mm x 160 mm x 40 mm
• Operating temperature: -30°C to +60°C -10°C to +60°C
• Inlet pressure on user: 5 to 10 bar
• Flow: 400 to 1,200 L/min
• Alert whistle sound volume: > 90 dbA
• Required components:
  • Dräger full face mask with P connector
  • Lung demand valve (LDV)
  • Belt

• European certifications (EN): EN 14593 parts 1 and 2Directive PPE 89/686/CEE
