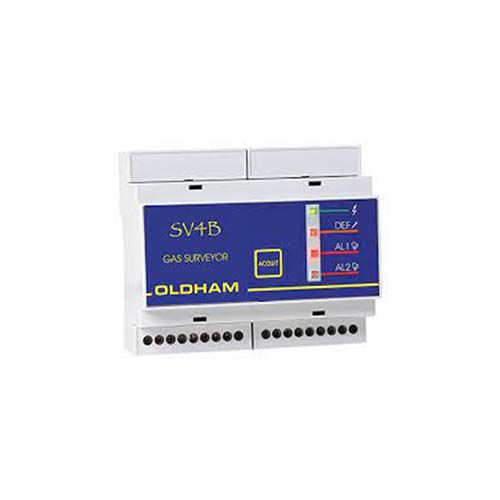

Surveyor SV4B Flammable gas measuring controller

Oldham

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Starting at $323.15

SKU

SV4B

Specially designed for very small boiler rooms, the Surveyor SV4B controller prevents the risk of explosion due to the presence of flammable gases in the ambient air. The small module is mounted on a standard DIN rail and can be easily integrated into any existing box or control cabinet, thus reducing installation costs.

Smaller size, easier installation and lower cost are the main advantages of this datalogger. Used only with Oldham's Wheatstone bridge series (OLC10 or OLC100), the Surveyor SV4B controller combines simplicity and reliability with an excellent price/performance ratio. Detailed description

SELECT OPTIONS

Documentation

Specification sheet Surveyor SV4B (Size: 227.2 KB)

Available options

Select your configuration and/or options, then add the product to your cart.

* Required option

Total amount of your selection:

$323.15

Surveyor SV4B measuring controller

SV4B Surveyor SV4B Flammable gas measuring controller Available $323.15

ACC Sans Centrale / Détecteurs ou Accessoires uniquement

Fixed gas detector OLC10 and OLC10 TWIN

6513559 OLC10 Detector Available $228.81

6513566 Pack of 2 OLC10 (OLC10 TWIN) Available $516.17

ACC Other configuration

Accessories

TLLED0243 Combined sound and light device 24 Vcc power supply 4 / 5 weeks $96.51

TLLED2303 Combined sound and light device 230 Vac power supply 4 / 5 weeks $129.04

Available options

Select your configuration and/or options, then add the product to your cart.

* Required option

Total amount of your selection:

$323.15

Quantity:

Details

The Surveyor SV4B gas detector is designed to be integrated with a simple click in an electrical cabinet near the control devices. It is a single-channel flammable gas detection unit to which one OLC10/OLC100 sensor or two OLC10 TWIN sensors can be connected. It has two potential-free alarm relays for the control and the acknowledgment of these, and can be manual or automatic.

The assets of the Surveyor SV4B

Mounting on symmetrical DIN rail (omega rail) for integration in a box or in a control cabinet
1 input available for 1 OLC10/100 or 2 OLC10 TWIN sensors
2 alarm levels: alarm1, alarm2 + fault
2 potential-free alarm relays for the control systems
Permanent self-control of the measuring circuit
Excellent quality/price ratio

Technical specifications

Type: Single channel gas detector for the detection of flammable gases
Capacities: 1 measurement channel
Sensor: 1 sensor type OLC10 or OLC100 or 2 sensors OLC10 TWIN
Power supply:
- 230 Vac (207 to 253 Vac)
- 12 Vdc (11.5 to 14 Vdc)
Power consumption:
- 5.8 W (connected sensor) under 230Vac
- 0.4A (connected sensor) under 12Vdc
Visual alarms:
- Malfunction : yellow
- Gas 1st threshold & 2nd threshold : red
Audible alarm: Integrated
Acquittal: Manual or automatic
Relaying:
- Relay 1: common gas (threshold 1) and fault
- Relay 2: gas (threshold 2)
Contact: RCT (relay 1 & 2)
Measuring line:
- Shielded cable with 3 active conductors
- Maximum line length: 40 m (with 1.5 mm2 conductor)
- Maximum loop resistance : 1,4 Ω
Mounting: symmetrical DIN rail to be placed in a closed box
Casing: NORYL
Dimensions: 105 x 90 x 60 mm / Weight : 0,360 Kg
Protection class: IP20
Certifications: CE and Low Voltage Directive
