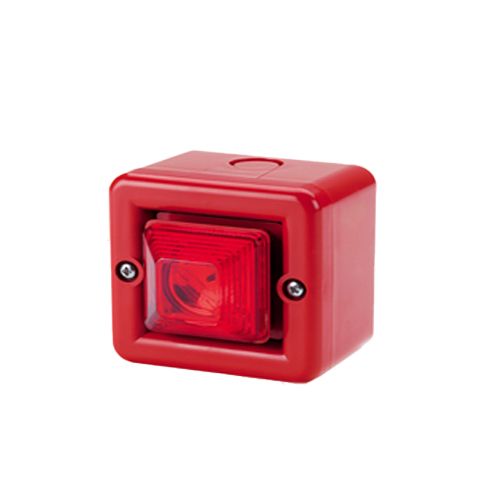

Mini Electronic alarm 100 dB LED - TL LED

A multi-purpose audible and luminous handset

Thanks to its small size and its very interesting performances, this audible and luminous handset is particularly adapted for all small and medium gas detection installations (load rooms, laboratories with risks of anoxia, storage, etc) or fire.

Despite its small size, the TL LED offers a 360° audible and visual diffusion. Its light power is equivalent to 3 candelas and its emission through a red lens can be omnidirectional.

Very easy to install by connecting it directly to the terminals, this mini electronic alarm also has a very low power consumption.

The advantages of the TL LED handset

• Available in 24Vdc or 230Vac versions
• Small size, small footprint
• Excellent value for money
• High protection rating (IP66)
• 360° sound and visual diffusion
• Low power consumption
• Simple installation, connection to terminal blocks

Technical specifications of the mini electronic alarm TL LED

• Power supply: 24Vcc or 230 Vca
• Sound power: 100 dB at 1 meter, audible up to 30 meters
• Number of sounds: 10 sounds including AFNOR NF S32-001 sound adjustable by potentiometer
• Selecting sounds:
  - By jumper
  - Control oF 3 sounds by internal connection (option)
• Light output:
  - 3 candelas
  - Omnidirectional light dispersion
• IP rating: IP66
• Operation:
  - Flash Hz (120 flash/mn)
  - Flashing LEDS
• Flashing duration: 70% efficiency after 8 million of uses
• Optics color: red
• Relative humidity: 90% to 20°C
• Operating factor: 100 %
• Dimensions: 86 mm x 86 mm x 102 mm
• Weight: 24Vcc : 300 g / 230Vca : 400 g
• Cable entry: 4 x 20 mm Ø predrilled (0.5 - 1.5 mm²)
• Use temperature: - 25°C to 55°C
• Storage temperature: - 40°C to + 70°C
• Approval & certifications: CE & EN54-3

Areas of application for the TL LED light and sound handset

Its many features make it suitable for a wide range of applications:

• In boiler rooms on incoming access points
• Electric vehicle charging rooms
• Storage rooms
• Universities, classrooms
• Laboratories with risk of anoxia (presence of nitrogen)
• Hospitals, MRI rooms with helium detection
• Cold rooms & food processing industries
• Wine-making rooms
