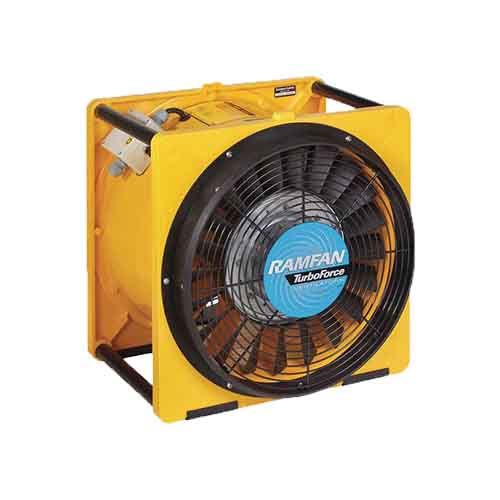

EFi150 large airflow exhaust fan for confined spaces
The EFI150 large airflow exhaust fan is designed to evacuate or inject large volumes of fresh and healthy air (7,580m3/h excluding ductwork) in confined or large-volume spaces such as tunnels, basements or marquees. It is also suitable for air circulation on certain demolition sites or to accelerate the drying of an industrial floor covering or a screed. Detailed description
The EFi150 exhaust fan for confined spaces
It can be used either in "ventilation" mode to dilute a polluted atmosphere or in "extraction" mode to evacuate dust, smoke and toxic gases in confined spaces. It is a high pressure axial turbo fan with 7 blades and a duct adapter (400 mm) delivered with a 4.6 meter cable.
Numerous accessories complete the equipment such as connectors, flexible ducts with fixing straps of different lengths (5 meters, 7.6 meters and 10 meters) and quick coupling cases.
The technical specifications of the large airflow exhaust fan EFi150
- Flow rate:
- Without duct: 7 580 m³/h
- With 4,6 m duct + 90° angle : 5 404 m³/h - Number of adaptable ducts: 2
- Power supply: 115/230 Vac 50/60 Hz
- Wiring: 14AWGG / 2,5 mm2
- Power: 1,1 kw
- Nominal intensity / inrush (starting): 8A / 40A
- Materials: High resistance ABS case
- Dimensions: 480 x 460 x 410 mm
- Weight: 25 Kg
- Ingress rating (switch): IP55
- Operating temperature d'utilisation: -20°C to +40°C
- Sound level: 90,2 dB to 1 meter
- Certifications CE
| Manufacturer | Ramfan |
|---|
