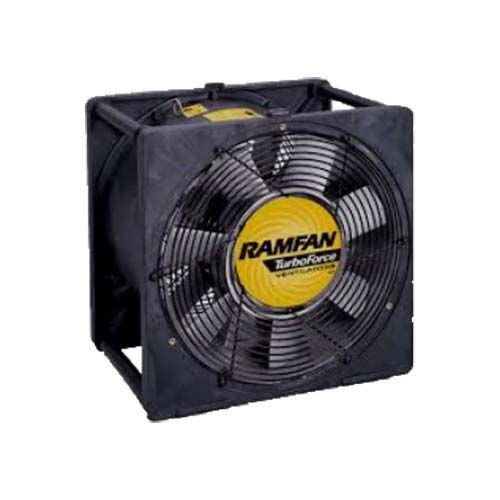

EFi150xx Large volume ATEX exhaust fan
The EFI150xx is an ATEX exhaust fan for use in potentially hazardous environments with explosion risks in the industry, the maritime sector, or aviation. It operates either in "ventilation" mode to dilute a polluted atmosphere or in "extraction" mode to evacuate dust, smoke, and toxic gases in confined spaces. Detailed description
The assets of the EFi150xx ATEX exhaust fan
It is very robust, resistant to corrosion, chemical products, and shocks, and delivers an airflow of 7,580 m3/h (excluding ducting), ideal for large volumes such as tunnels and basements. Many ATEX accessories complete the equipment: fittings, couplers, and antistatic ducts.
The EFI150 large airflow exhaust fan is also available in an ATEX version (EFI150xx) for use in potentially hazardous environments with explosion risks in industry, marine and aviation. With its antistatic polycarbonate/ABS casing, it is resistant to corrosion, chemicals and shocks.
There are many accessories available to complement the device such as: fittings, flexible sheaths with fastening straps of different lengths (5 meters, 7.6 meters and 10 meters) and quick coupling cases.
The technical specifications of the EFi150xx large volume ATEX exhaust fan
- Flow rate
- Without duct: 7 580 m³/h
- With 4.6m duct + 90° angle: 5 404 m³/h - Number of adaptable ducts: 2
- Power supply: 115/230 Vac 50/60 Hz
- Wiring: 14AWGG / 2,5 mm2
- Power: 1,1 kw
- Nominal intensity / inrush (starting): 8A / 40A
- Materials: Antistatic PC/ABS fireproof V0 case
- Dimensions : 480 x 460 x 410 mm
- Weight: 28 kg
- Ingress rating (switch): IP55
- Operating temperature: -20°C to +40°C
- Sound level: 90,2 dB to 1 meter
- Certifications : CE, ATEX, IECEx, UL
| Manufacturer | Ramfan |
|---|
