TouchPoint Plus controller - 16-channel gas detection unit

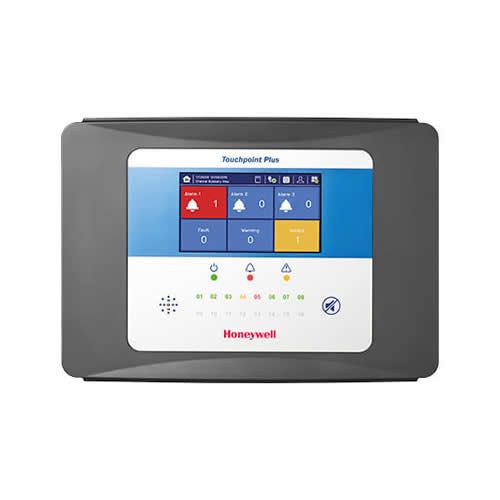

The TouchPoint Plus gas detection controller

With its intuitive and ergonomic touch interface, the TouchPoint Plus controller is particularly simple to implement. All information is accessible by icons in a familiar environment which simplifies operation and reduces training needs. The information is displayed clearly and concisely on the backlit color screen.

The TouchPoint Plus accepts many input / output modules that allow you to customize and configure the gas controller to suit most applications. A gas detector database integrated into the central unit allows faster configuration and commissioning.

An extension module can be added allowing the controller unit to control up to 16 gas detectors. The controller configuration as well as measurements data archive are stored on an SD card for better process traceability.

TouchPoint Plus controller main assets

• Up to 16 gas detectors with the 8-way extension module
• 7’’ color touch screen user interface
• Measurements recording and archiving on SD card
• Very resistant waterproof and dustproof case
• Built-in backup battery for continuous operation
• Powered outputs, dedicated to flashes and sirens
• TCP / IP and Modbus communication protocols available

Honeywell TouchPoint Plus controller technical specifications

• Capacity: Up to 8 channels with a base unit, up to 16 channels with an expansion unit (wall mounting)
• Type of inputs: 2 or 3 wires, 4-20 mA or Wheatstone mV bridge
• Power supply: 110/220 Vac, 50-60 Hz or 18 to 32 Vdc (+/- 10%)
• Basic I / O modules: 4 relay outputs + 2 digital inputs
• Available I / O modules (8 channels maximum):
  - 4-20 mA inputs: 2 or 3 wires, 2/4/8 channel modules
  - mV inputs: 3 wires, 2/4/8 channel modules
  - Mixed inputs: 2-channel mA modules + 2 mV channels & 4 + 4 module
  - Relay outputs: 12 or 24 configurable relay modules
  - 4-20 mA outputs: Modules 4 or 8 isolated measurements
  - Communication: RS485 Modbus RTU / Modbus HTTP / TCP / IP
• Screen: 7 '' LCD color touchscreen with graphical interface
• Visual indicators: 3 LED indicators for basic indications.
• Audible alarm: ≥ 70 dB at 1 m
• Logs: Configuration, events and data saved on SD card (standard)
• Battery: Internal 22.2 V lithium-ion battery, capacity 2600 mAh (> 30 minutes for typical systems)
• Material: Polycarbonate ABS housing
• Dimensions / Weight: 426 m × 300 m × 156 mm / 8.5 kg
• Protection index: IP65 and NEMA 4X
• Cable entry and exit: 13 pre-drilled and sealed cable entries for PG16 / M20 cable glands
• Environment:
  - Operating temperature: -10°C to +55°
  - Humidity: up to 95% non-condensing
• Certifications:
  - EMC: according to EN 50270: 2015x
  - Safety: IEC 61508: 2010 Ed.2 SIL2, EN 50271: 2010
  - Marine MED (Item number: 3.54)
