Escape respirator, air purifying EEBD - PARAT 3200

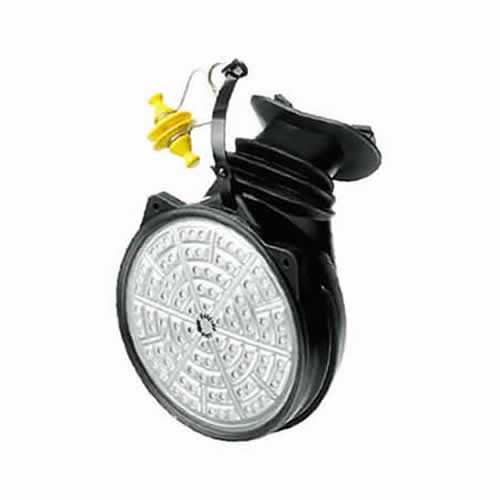

Dräger PARAT 3200 air purifying EEBD unit

The PARAT 3200 is an escape respirator unit with mouthpiece/ nose clip equipped with an ABEK-15 multi gas filter. Housed in a rugged and ergonomic enclosure, this device is compact and easy to carry. Approved to the only recognized standard on industrial air purifying evacuation devices (DIN 58647-7), it provides safe breathing air to its user at least during 15 minutes to evacuate.

Fast and easy operation
In order to use the air purifying EEBD, just open the housing and place the respirator on the face. Pictograms labeled inside show the correct donning procedure.

Easy to don
A mouthpiece enables instant equipment and reduces leak risks. A nose clip is provided to avoid users breathing through their noses.

PARAT 3200 escape respirator technical specifications

Air purifying EEBD: ABEK-15 gas filter against organic, inorganic (except carbon monoxide CO), acid, sulphur and ammonia gases and vapors
Storage: 4 years maintenance free, filter exchange every 4 years, total shelf life 12 years
Dimensions: (L x W x H) 170 x 110 x 60 mm / Weight approx. 330 g
Certification: DIN 58647 part 7 (CE 0158)
ATEX certification (electrostatic risks generated by friction): use in zones 0, 1 and 2 with gas explosion risks
Universal size to fit in any morphology (flanged half-mask with 2 attachment points).
Compatible with other PPE: glasses, helmet…
Available in Tropical version PARAT 3260 provided vacuum-packed in aluminium foil, especially designed for use in tropical climatic zones.
