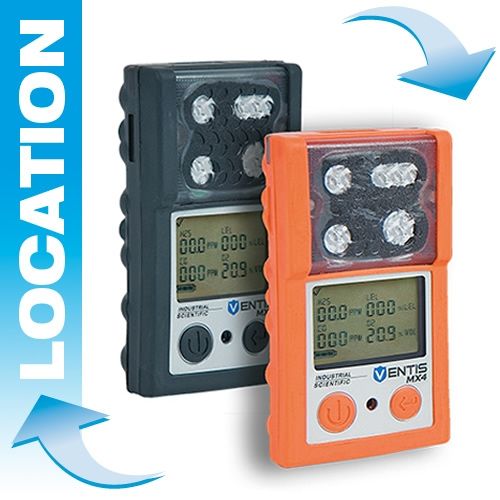

Portable 4 gas detector rental - Ventis MX4

4 gas detector rental

This is the most popular gas detector for rent (and for purchase). Thanks to our large stock of hundreds detectors in our French office, it can be delivered within 24 to 48 heures (it can also be directly picked up in our office). It is provided fully charged and calibrated with instructions of use and calibration certificate.

The Ventis® MX4 4 gas detector is a versatile device mainly designed for use in confined spaces, sanitation, steel industry and most commonly in applications that may contain combustible gases (gas pipes), carbon monoxide (fossil material combustion), hydrogen sulfide (organic matter fermentation) or oxygen (oxygen deficiency).

Ventis® MX4 4 gas detector main assets

Protected in a shock-resistant housing made of highly resistant polycarbonate and a protective overmold making it resistant to dust and water (projection and immersion), the Ventis® MX4 is equipped with a large LCD display and two buttons for increased ease of use.

• ATEX 4 gas detector: any combustible gas - O2 - CO & H2S
• 95 dB audible, ultra-bright LED visual and vibrating alarms
• Resistant to water (projection and immersion) and dust
• Compact size and weight, a multigas detector with dimensions of a single-gas detector
• Rechargeable Li-ion battery pack for daily use – more than 12 hours continuously
• Optional slide-on pump to draw samples up to 30 meters

Ventis® MX4 4 gas detector gases and measuring ranges

Ventis® MX4 4 gas detector technical specifications

• Case material: Polycarbonate with protective overmold
• Alarms: Ultra-bright  LEDs, audible alarm (95 dB at 30 cm) and vibrating alarm
• Power supply and runtime: rechargeable Li-ion battery: usually 18 hours at 20° (18 hours for extended battery)
• Dimensions: 103 mm x 58 mm x 30 mm / Weight: 182 gramms
• Ingress protection: IP66 - IP67
• Certifications:
  - ATEX : Ex ia IIC T4 Ga et Ex ia I Ma ; Equipment group II 1G/I M1
  - CSA : Cl I, Div 1, G A-D, T4; Ex d ia IIC T4
  - UL : Cl I, Div 1, Groups A-D, T4; Zone 0, AEx ia IIC T4 ; Cl II, Gr F-G (carbonaceous and grain dust)

Slide-on pump for Ventis® MX4 gas detector

The VSP slide-on pump for Ventis® MX4 4 gas detector is well-suited for operators who wear their gas detectors as a personal protective equipment but who might need a pump for confined space entries.

• Convenient sampling: remote sampling up to 15 m
• Easy connection: no tool required to connect or remove the pump
• Case material: Polycarbonate with protective overmold
• Power supply and runtime: rechargeable Li-ion battery: usually 18 hours at 20°
• Dimensions: 143 mm x 81 mm x 68 mm / Weight: 270 grams
• Ingress protection: IP66 - IP67
• ATEX approvals: Ex ia IIC T4 Ga et Ex ia I Ma ; Equipment group and category II 1G/I M1

REF. LOCMX4
