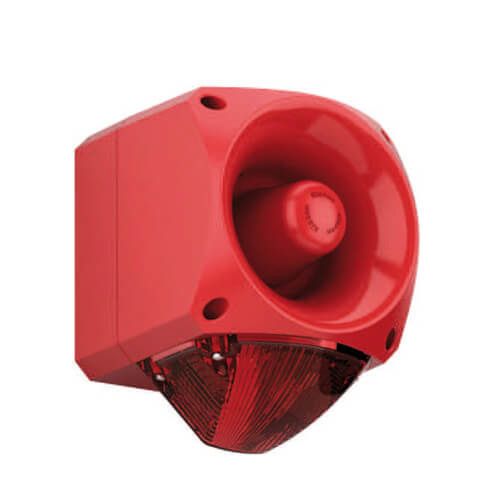

NEXUS-C industrial combined visual and audible alarm

Skip to the beginning of the images gallery

Starting at $210.95

SKU

NEXUSC

The NEXUS-C combined audible and visual alarm device has a 5 Joule flashing light and a 105 to 120 dB sound power depending on the model. With a high protection degree (IP66), this waterproof and dustproof signaling device can be installed indoors or outdoors.

It is particularly suitable in an industrial environment for visual and audible information and / or danger signaling. The adjustable sound power allows use in very noisy areas. Detailed description

SELECT OPTIONS

Documentation

Specification sheet Nexus-c (Size: 165.2 KB)

Available options

Select your configuration and/or options, then add the product to your cart.

* Required option

Total amount of your selection:

$0.00

UNIT SELECTION

101121 NEXUS 105 dBA red xenon light 5J – voltage 10-60 Vcc Available + $220.54

101122 NEXUS 105 dBA red xenon light 5J – voltage 110-230 Vcc Available + $220.54

Available options

Select your configuration and/or options, then add the product to your cart.

* Required option

Total amount of your selection:

$0.00

Quantity:

Details

A versatile visual and audible alarm device

The NEXUS-C combined signaling device has a 5 joules flashing light signal and a 105 to 120 dB audible alarm signal depending on the selected model. It allows an installation in a noisy environment where the visual signal completes the audible alarm. It is particularly well suited for indoors or outdoors industrial applications with an IP66 protection index.

Nexus-C signaling device assets

Simultaneous or independent siren and light activation by a double wiring terminal block
Waterproof and dustproof (IP66), can be installed indoors or outdoors
Sound level adjustable on site
Choice of light technology: xenon or LED
Available in 10-60 VDC or 110-230VAC version
Simple installation, connection in the base
Use: tertiary or industrial sector

Nexus-C visual audible alarm combination technical specifications

Sound power:Available in 3 versions depending on the sound power:
- NEXUS 105: 105 dB
- NEXUS 110: 110 dB
- NEXUS 120: 120 dB
Power setting: -20dB per potentiometer (except for AFNOR NFS32001 sound)
Number of sounds: 64 sounds including AFNOR NFS32001 sound
Selecting sounds: By internal microswitches. Control of 3 sounds by internal connection (except 110/230 Vac version)
Light output for the whole range:
Vac: 5 Joule Xenon light - 60 flashes / min.
Vcc: LED light equivalent power
Available lens colors:
Red as standard
Orange, green, blue on request
Power supply: 10-60 Vcc or 110-230 Vca
Consumption:
- NEXUS 105 : 8 to 40 mA
- NEXUS 110 : 10 to 50 mA
- NEXUS 120 : 120 to 550 mA
Certification: EN54-3 (Sound Alarm Fire Devices)
Material / Finish:
- Body: red high resistance ABS in the mass
- Lens: Polycarbonate
Waterproof: IP66
Tapping: 5 entries pointed on 2 sides
Terminal block: 8 terminals of 2.5 mm2
Dimensions / weight:
- NEXUS 105: 136.2 x 173.1 x 124.5 mm / 0.8 kg
- NEXUS 110: 166.3 x 213.5 x 149.5 mm / 1.2 kg
- NEXUS 120: 166.3 x 213.5 x 149.5 mm / 2.0 kg

Audible and visual signaling devices Gas detection controller Fixed gas transmittter
