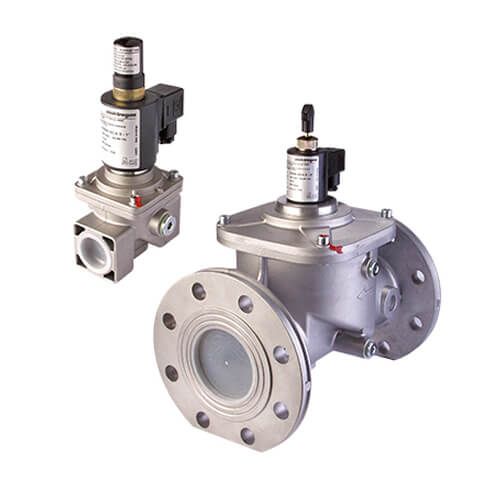

6 bar maxi ELK900 manual reset gas solenoid valve

6 bar manual reset gas solenoid valve

The ELK900 is a manual reset safety gas solenoid valve for pressures up to 6 bar. This is a normally closed solenoid valve, which means that in case of power deficiency, the valve remains closed. This is the most commonly used unit in industrial kitchens and restaurant kitchens!

These solenoid valves are called “manual reset” as they need a human intervention to be reset and let gas flow once powered.

ELK900 gas solenoid valve technical specifications

• F/F connectors: threaded gas from 3/8” to 6” flanged PN16 – UNI 2223 (from DN65 to DN250)
• Nominal voltage: 230V - 50/60 HZ (Upon request: 110V-50/60 Hz or 24V Ac/Dc or 12V Ac/Dc)
• Operating temperature: -15 °C to +60 °C
• Operating pressure: 6 bar
• Closing times: <1second
• Ingress protection: IP 65
• Pressure taps: 1/4“on two sides (except for brass model)
• ATEX EEc nA 11 T4X standard approved
• End of course: upon request

Power failure unit

The ELK50002 power failure housing is a spare electrical unit for manual reset gas solenoid valve from ELK600 (maximum pressure 600 mbar) or ELK900 (maximum pressure 6 bar) series. It is designed to keep the gas solenoid valve opened in case of power failure.

The power failure unt keep the gas solenoid valve opened from 300ms to 1 second according to the unit.

• Power supply: 230V - 50/60 HZ
• Red visual indicator: 230 V AC
• Protective fuse: 1 A
• Left connector: 230V power supply
• Right connector: coil output

Technical specifications

• Connectors: - threaded F/F gas 3/8” at 2”- flanged PN16 UNI 2223 from DN65 to DN150
• Power supply: 230V - 50/60 HZ
• Upon request: 110V-50/60 Hz / 12-24V AC/DC
• Voltage margin: -15% to +10%
• Operating temperature: -15 °C to +60 °C
• Operating pressure: 6 bar
• Opening/closing times: <1second
• Ingress protection: IP 65
• Cable gland: DIN PG 9 plug
• Pressure taps: 1/4“on two sides
• End of course: upon request
