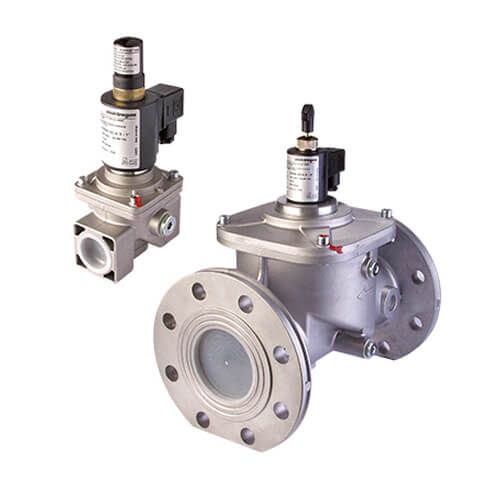

600 mbar manual reset gas solenoid valve - ELK600
600 mbar low pressure manual reset gas solenoid valve (maximum pressure 600 mbar) normally closed. These solenoid valves are said to be “manual reset” and require human intervention to return to their initial state after having been triggered.
3/8 "to 1" 1/2 F / F threaded connections and standard PN16 UNI 2223 flange connections from DN65 to DN250. Nominal voltage 230V 50/60 Hz (On request: 110V-50/60 Hz or 24V Ac / Dc or 12V Ac / Dc). Detailed description
600 mbar manual reset gas solenoid valve
ELK600 is a manual reset safety gas solenoid valve normally closed for 600 mbar maximum pressures. This is a normally closed solenoid valve, which means that in case of power deficiency, the valve remains closed. This is the most commonly used unit in gas boiler rooms associated to a gas detection system!
These solenoid valves are called “manual reset” as they need a human intervention to be reset.
ELK600 gas solenoid valve technical specifications
- F/F connectors: threaded gas from 3/8” to 6” flanged (from DN65 to DN250)
- Nominal voltage: 230V - 50/60 HZ (Upon request: 110V-50/60 Hz / 12/24V AC/DC)
- Voltage margin: -15% to +10%
- Operating temperature: -15 °C to +60 °C
- Operating pressure: 500 mbar
- Closing times: <1second
- Ingress protection: IP 65
- Pressure taps: 1/4“on two sides (except for brass model)
- ATEX EEc nA 11 T4X standard approved
- End of course: upon request
Power failure unit
The ELK50002 power failure housing is a spare electrical unit for manual reset gas solenoid valve from ELK600 & ELK900 series. It is designed to keep the gas solenoid valve opened in case of power failure from 300ms to 1 second according to the unit.
- Power supply: 230V - 50/60 HZ
- Red visual indicator: 230 V AC
- Protective fuse: 1 A
- Left connector: 230V power supply
- Right connector: coil output
ELK 600 gas solenoid valve technical specifications
- Connectors: - threaded F/F gas 3/8” at 2”- flanged PN16 UNI 2223 from DN65 to DN150
- Power supply: 230V - 50/60 HZ
- Upon request: 110V-50/60 Hz / 12/24V AC/DC
- Voltage margin: -15% to +10%
- Operating temperature: -15 °C to +60 °C
- Operating pressure: 500 mbar
- Opening/closing times: <1second
- Ingress protection: IP 65
- Cable gland: DIN PG 9 plug
- Pressure taps: 1/4“on two sides
- End of course: upon request
