Low pressure AIR/GAS pressure switch (Pmax 550 mbar) - C6097

AIR/GAS pressure switch

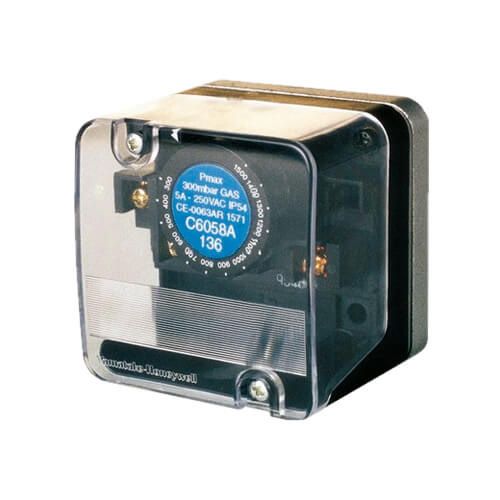

The C6097 AIR/GAS pressure switch is designed to control pressures (mini pressure, maxi pressure or differential pressures) from AIR/GAS lines or filter clogging levels (fans, blowers…). When a pressure variation occurs, the receiver diaphragm detect it and activates the All or Nothing contact (SPDT) from the external control circuit.

C6097 AIR/GAS pressure switch technical specifications

• Pressure sampling:

- Positive pressure samplings: drilled RP 1/4“

- Pressure sampling for differential pressure: drilled RP 1/8“

(Every thread complies with ISO 7-1)
• Setpoint accuracy: ±15 % of total scale value (when pressure grows)

Contacts breaking capacity:

- Resistive load: 250 Vac - 5A
- Inductive load: Cos oe: 0,6
- Minimal voltage required: 50 mA, 24 Vac

• Pressure sensitive elements nature: Simple NBR diaphragm
• Materials:

- Housing: Molded aluminium

- Base: Polybutylene terephthalate

- Cover: Polycarbonate

• Operating ambient temperature: -15° to +60° C
• Relative humidity: Maximum allowed: 90 % at 40° C (non-condensing)
• Monitored fluid temperature: -15° to +80° C
