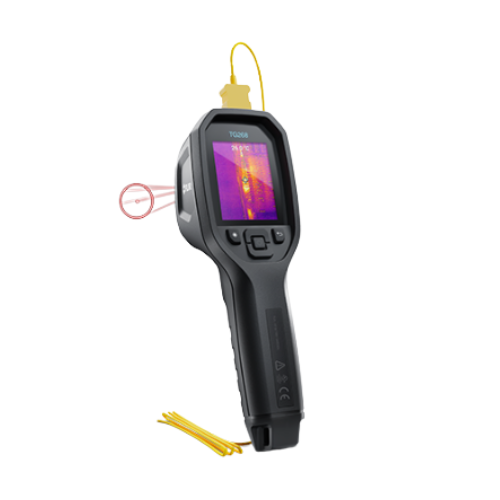

FLIR TG268 Thermal Imaging Camera with K-type Thermocouple

The FLIR TG268 thermal imaging camera combines spot infrared measurement with MSX® multispectral imaging, making it the perfect tool to detect hot and cold spots in electrical, HVAC, mechanical, or automotive systems. It enables fast, reliable diagnostics and prevents equipment failure.

Durability & Materials

Built for tough environments, the TG268 features IP54 protection, withstands drops from up to 2 meters, 25 G shocks, and 2 G vibrations. Its rugged body ensures long-term use in industrial and field conditions.

Ease of Use

With an ergonomic, one-hand design, the camera is equipped with a 2.4” color LCD screen (320 x 240 px) that provides clear, real-time readings. It powers up in less than 10 seconds and has a simple interface for intuitive operation.

Visibility & Imaging

MSX® technology blends thermal and visual imagery to enhance detail and clarity. Several color palettes are available: Iron, Rainbow, Arctic, White hot, Black hot, and Lava for optimal viewing across environments.

Targeting & Optics

The device includes a Class 1 laser for pinpoint targeting and a 24:1 spot ratio, enabling accurate distance readings. The K-type thermocouple allows extended temperature range measurements from -30 °C to +390 °C.

Included Accessories

Comes with a carrying pouch, wrist strap, USB-C cable, K-type thermocouple, and user documentation.

Cleaning & Maintenance

Clean using a dry, soft cloth. Avoid liquids or abrasive products. Recharge via USB-C for optimal battery management.

Standards & Certifications

• Certifications: CE, CB, RCM, FDA, UL, NRCan, CEC
• EMC Standards: EN61000-6-3 / EN61000-6-2 / FCC Part 15 Class B
• Radio Standards: ETSI EN 300 328 / FCC Part 15.249
• Tripod mount: Yes (¼” thread under handle)
