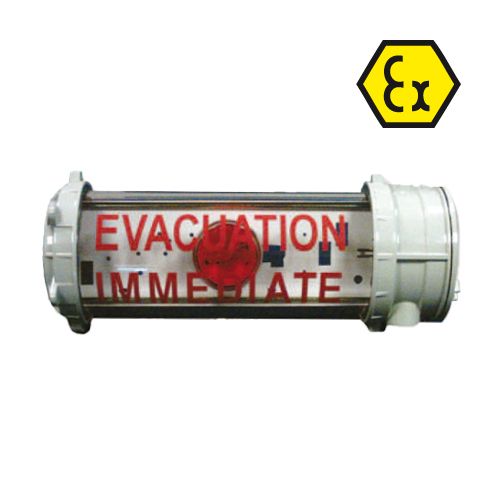

ATEX visual panel, ATEX light panel

Skip to the beginning of the images gallery

Starting at $1,059.43

SKU

AL2

ATEX certified zone 1,2,21 & 22 with gas explosion & dust risks and designed with a very high protection level, the ATEX AL2 visual panel allows to prohibit access, evacuate an area, or indicate a danger’s nature in a classified area.

With a very robust alloy body, a 2W or 5W xenon flashing light device and a very high protection index (IP66/68), this light device is waterproof and dustproof and is particularly well suited for industrial applications, gas, fire and extinction in a potentially explosive environment. Detailed description

SELECT OPTIONS

Documentation

Specification sheet AL2 (Size: 192.2 KB)

Available options

Select your configuration and/or options, then add the product to your cart.

* Required option

Total amount of your selection:

$0.00

UNIT SELECTION

300101 AL2 – ATEX 2W “IMMEDIATE EVACUATION” – 12/80 VDC 4 weeks + $1,059.43

300102 AL2 – ATEX 2W “NO ENTRY” – 12/80 VDC 4 weeks + $1,059.43

300103 AL2 – ATEX 2W “IMMEDIATE EVACUATION” – 230 VAC 4 weeks + $1,119.27

300104 AL2 – ATEX 2W “NO ENTRY” – 230 VAC 4 weeks + $1,119.27

300105 AL2 – ATEX 5W “IMMEDIATE EVACUATION” – 12/80 VDC 4 weeks + $1,078.27

300106 AL2 – ATEX 5W “NO ENTRY” – 12/80 VDC 4 weeks + $1,078.27

Available options

Select your configuration and/or options, then add the product to your cart.

* Required option

Total amount of your selection:

$0.00

Quantity:

Details

AL2 ATEX visual panel assets

ATEX 1, 2, 21 and 22 for gas and dust risks (GD)
Alloy body (Zamak) and glass tube
12Vcc to 80Vcc or 230 Vac power supply
Power 2W (indoor use) or 5W (outdoor)
Replaceable xenon flash light
High protection index: IP66/68

AL2 ATEX visual panel technical specifications

Light power: Xenon red flashing light device
Xenon red flashing light device
2W (indoor applications) or 5W (outdoor applications)
Power supply: 12 to 80 Vcc or 230 Vac
Consumption:
2W : 95 mA at 24 Vcc - 83 mA at 48 Vcc - 18 mA at 240 Vca
5W : 200 mA at 24 Vcc – 112 mA at 48 Vcc
Material:
Alloy body (Zamak) and translucent glass tube
Finishing: White background with transparent cover and text in red letters, on request customization
IP rating : IP66/68 (10m) / IK08
Inputs: 2 x M20 (without cable glands)
Wiring : screw terminal, max. 2,5 mm2
Dimensions: Ǿ 50 mm x 430 mm / Weight: 5 kg
ATEX certifications:
ATEX zones 1, 2, 21, 22
Gas (G) : Ex II 2 G – Ex d IIC T5/T6
Dust (D) : Ex II 2 D Ex tD A21 T95°C
Certification temperature:
T5 (-40 °C to +55 °C)
T6 (-40 °C to +40 °C)

Audible and sisual signaling devices Fixed gas transmittter Optical flame detector ATEX accessories

More Information

More Information
Technical specifications	Certification ATEX : Ex II 2 GD EExd IIC T6 Zones d’utilisation : Zones 1, 2, 21 et 22 pour risques gaz et poussières Température de certification : De -20°C à +55°C Etanchéité : IP66 et IP67 Puissance : 2 W (intérieur) ou 5 W (extérieur) Matière : Métal (Zamac) et tube en verre Finition : Peinture époxy grise Feu rouge en standard Texte en lettres rouges Taraudages : 2 x M20 Bornier : 3 bornes de 2.5 mm² Poids et dimensions : • 7 kg • Diam 174 x 430 mm Textes standards (autres sur demande) : « ENTRÉE INTERDITE » ou « ÉVACUATION IMMÉDIATE »
