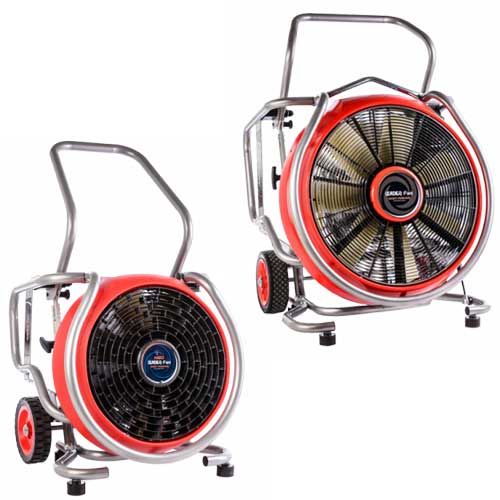

MT236 & MT296 thermal fan with ovalized jet
The LEADER MT236 & MT296 thermal fans are designed for emergency services requiring maximum flow in all circumstances, without the need for an external energy source, while guaranteeing efficiency thanks to NEO and EASY POW'AIR technology.
The NEO and EASY POW'AIR units are very powerful, with motors delivering 52,550 m3/h and 128,950 m³/h respectively. They can be positioned up to 6 meters from an opening without loss of power.
MT236 and MT296 thermal fans assets
The LEADER MT236 & MT296 thermal fans are designed for emergency services requiring maximum flow in all circumstances, without external energy source need, while guaranteeing efficiency thanks to NEO and EASY POW'AIR technologies.
- Powerful and operating life from 1h50 to 2h10 according to the model chosen
- Handy and stable, even in hard-packed areas, thanks to large, wide wheels at the rear of the fan
- Heavy-duty propeller matched to the power of the engine
- Double-walled red aluminum / ABS thermoplastic impeller
- Metal grid
- Wrap-around protective frame with gray epoxy coating
- Adjustable from 0.90 m to 6 m in front of a door without loss of power
- Reduced noise level inside the building
- NEO or AESY POW'AIR technology: ovalized jet for maximum airflow into the building
Technical specifications of the MT236 thermal fan with ovalized jet
The ability to move the MT236 fan away, combined with maximum ventilation in specific situations (high doors and windows, stoops, landings, etc.). Moreover, the device gets a stabilizing stand integrated into the rear of the unit, allowing the fan to be titiled to -10°C for downward ventilation (for half-basement ventilation, for example).
- Open airflow: 52,550 m³/h
- AMCA 240 flow rate: 33,660 m³/h
- Ventilation type: VPP supply
- Engine:
- HONDA GX 160 engine (4-stroke)
- Automatic engine shutdown in case of low oil level
- Installation checked and approved by Honda Motor Co, Ltd.
- 4.8 hp according to SAEJ1349 2007 standard
- Noise level 93 dB at 3 m
- 2h10 operating life at full throttle - Weight: 39.6 kg
- Dimensions W x H w D: 550 x 260 x 490 mm
- Propeller diameter: 420 mm
- Applications: Single door - detached houses, small buildings
Technical specifications of the MT296 thermal fan
The MT296 thermal fan offers a wide range of options: spiral ducting, misting, exhaust extension, protective cover, and a -10° stand for negative inclination for basement ventilation. It can also fit with a high-expansion foam adapter.
- Open airflow: 128,950 m³/h
- Ventilation type: VPP supply
- Engine:
- B&S Vanguard twin-cylinder engine (4-stroke)
- 16 hp according to SAEJ1349 2007 standard
- Noise level 93 dB to 3 m
- 1h05 operating life at full throttle - Weight: 76,7 kg
- Dimensions W x H x P: 710 x 780 x 678 mm
- Propeller diameter: 570 mm
- Applications: Single door (detached houses, small buildings...) and double doors (high-rise buildings, medium-sized hangars...)
| Manufacturer | Leader |
|---|
