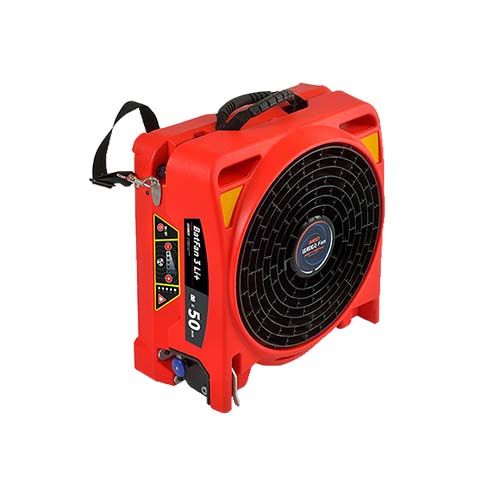

BATFAN 3 LI+ Portable battery-powered fan / extractor
Designed to be quickly transported to the job site, the BATFAN 3 LI+ portable fan/extractor is designed to be carried easily and comfortably by hand or over the shoulder. Its removable battery can also be separated from the fan during transport, so that the fan can be carried on one side, and the battery on the other, for better load distribution.
Thanks to its high protection rating (IP66), it can be used indoors or outdoors, in supply or extract mode, with or without ducting. Powerful, self-contained and compact, it delivers a constant flow rate of 18,600 m3/h for 50 min with a single battery, or 1h40 with 2 batteries. Benefiting from NEO technology (ovalized jet), the BATFAN 3 LI+ fan/extractor has an excellent compactness/performance ratio. Detailed description
BATFAN 3 LI+ fan / extractor assets
BATFAN 3 LI+'s extractable/interchangeable batteries are certified to IP65. Their high capacity means they can maintain a constant operating speed throughout operation. They are
equipped with an external charge level indicator, so you can check the battery level without having to put it in the fan. A full charge takes just 3 hours, for an operating time of 50 minutes.
Depending on the application, the BATFAN 3 LI+ can also be used as a foam generator or as a misting device with an adapter. Thanks to its wide base, it offers unrivalled stability during operations, even on uneven or sloping ground.
- High performance and autonomous: 50 minutes at 18,600 m³/h (AMCA flow rate) with no gradual loss of flow
- NEO technology: ovalized jet for maximum air flow into the building
- Battery: Extractable and therefore interchangeable/replaceable for fully autonomous operation. Use of a second battery increases autonomy to 1h40
- Power supply: can be plugged in for charging while working
- Compact and mobile: Equipped with a handle and carrying strap, it can be carried by a single person. Foldable, it is easy to store in the trunk of a vehicle
- Design: Two articulated parts for excellent stability
- Adjustment: Tilts from +65° to -90° (allowing flat positioning over a manhole)
- Lighting: 10 LEDs illuminate the blowing zone
Technical specifications of BATFAN 3 LI+ fan / extractor
- Open air flow: 29,270 m³/h
- AMCA 240 flow rate: 18,600 m³/h
- Motor: 600 W
- Weight:
- 24 kg with battery
- 19.8 kg without battery - Dimensions W x H x D:
- Folded: 540 x 530 x 270 mm
- Propeller diameter: 420 mm - Operating time:
- 50 min at full speed
- 3h30 at 60% power - Operating temperature: -20°C / +55°C
- Power supply: Interchangeable Li-ion battery or mains supply
- Charging time:
- Fast Charge external charger: 100% in 3h (80% in 1h40 min)
- Internal charger: 100% in 7h30 min - Protection rating: IP66
- Noise level: 76.3 dB at 3m
- Ventilation type: PPV, combined PPV and extraction
- Tilt: Tilt adjustment from +65° to -90° (allowing flat positioning over a manhole)
- Warranty:
- Batfan: 5 years
- Motor: 3 years
- Battery: 1 year or 500 cycles
| Manufacturer | Leader |
|---|
Worldwide delivery
International delivery in compliance with international transport regulations (IATA, AMDG, ARD).
On demand "lithium" and "dangerous goods" regulated packaging.
Learn more about our worldwide shipping solutions.
