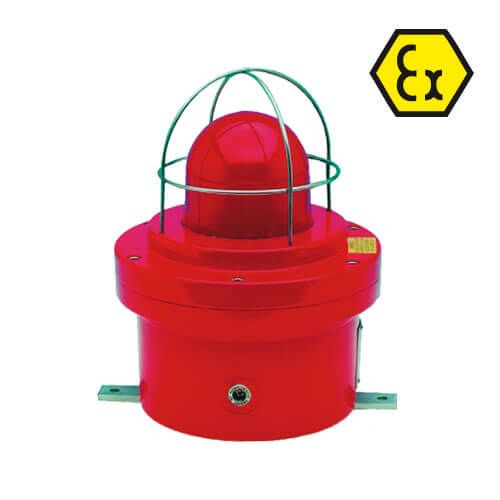

ATEX rotating beacon (revolving light) - TH12

Skip to the beginning of the images gallery

Starting at $863.28

SKU

TH12

ATEX rotating beacon (revolving light) with tungsten halogen bulb for classified areas. High ingress preotection rating (IP66/IP67) for outdoor implementation... Detailed description

SELECT OPTIONS

Available options

Select your configuration and/or options, then add the product to your cart.

* Required option

Total amount of your selection:

$0.00

UNIT SELECTION

813112 TH12 – Rotating beacon (revolving light) – 12 VDC + $863.28

813122 TH12 – Rotating beacon (revolving light) – 24 VDC + $863.28

813162 TH12 – Rotating beacon (revolving light) – 110 VAC + $991.83

812082 TH12 – Rotating beacon (revolving light) – 240 VAC + $991.83

Available options

Select your configuration and/or options, then add the product to your cart.

* Required option

Total amount of your selection:

$0.00

Quantity:

Details

GET A FREE QUOTATION FOR THIS PRODUCT AND ITS OPTIONS

ATEX rotating beacon (revolving light) - tungsten halogen bulb for classified areas

Standard version: red lens / 230 VAC power supply
Available in different power supplies (12 VDC - 24 VDC - 110 VAC - 230 VAC) and several lens colors (orange, red, light, blue, green or yellow)

technical specifications

ATEX approval: Ex II 2 G - EExd IIB T5/T4
Operating zones: Zones 1 and 2 for gas hazard
Certified temperatures:
• T5: From -55°C to +40°C
• T4: From -55°C to +70°C
Other approvals
• GOST R (Russian), contact us
IP rating: IP66 and IP67
Power:
• tungsten halogen bulb
• 55W (only in 12VDC)
• 70W (only in 24 VDC, 110 VAC and 240VAC)
Rotation frequency:
• 60 revolutions per minute
• 120 revolutions per minute
• 180 revolutions per minute (except 110 VAC version)
Material:
• Body: glass fiber reinforced polyester, stainless steel screws and mounting straps

• Lens: glass

Finish:
• Mass-dyed marble black

• Lens: orange, red, light, blue, green or yellow

Threadings: 2 x M20
Terminals block: 6 x 6 mm² terminals
Weight and dimensions:
• 7.6 Kg
• Diam 242 x 307 mm (guard included)
Information
Attention: Continuous walking time = 3 hours maximum

More Information

More Information
Technical specifications	Certification ATEX : Ex II 2 G - EExd IIB T5/T4 Zones d’utilisation : Zones 1 et 2 pour risques gaz Température de certification : • T5 : De -55°C à +40°C • T4 : De -55°C à +70°C Autres certifications • GOST R (Russe), nous consulter Étanchéité : IP66 et IP67 Puissance : • Lampe tungstène halogène • 55W (uniquement disponible en 12Vcc) • 70W (uniquement disponible en 24Vcc, 110Vcc et 240Vcc) Fréquence de rotation : • 60 tpm • 120 tpm • 180 tpm (sauf version 110Vca) Matière : • Corps : Polyester renforcé de fibres de verre, fixations inox • Verrine : Verre Finition : • Corps marbré noir dans la masse • Verrine orange, rouge, claire, bleue, verte ou jaune Taraudages : 2 x M20 Bornier : 6 bornes de 6 mm² Poids et dimensions : • 7,6 Kg • Diam 242 x 307 mm (grille incluse) Information Attention : Temps de marche en continu = 3 heures maximum
