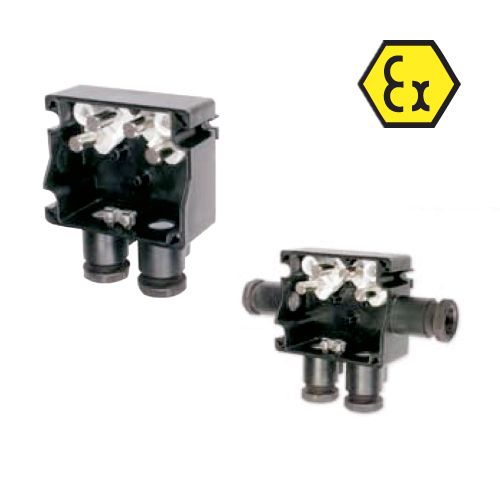

ATEX junction boxes - GHG-R1 and GHG-R2

GHG-R1 unit:

Cable entries / Terminal blocks:
• 2 molded polyamide cable glands for unarmoured cable
Ø 8 to 17mm
• 4 pillar terminals and 1 ground terminal:
Pillar terminal:
- 4 x 4mm² multifilament, 2 x 6mm² simple core
Ground terminal:
- 4 x 2,5mm² multifilament, 2 x 4mm² simple core
Weight and dimensions:
• 250g approx. (CG included)
• 100 x 122 x 61 mm

GHG-R2 unit:

Entrées de câble / Borniers :
• 4 molded polyamide cable glands for unarmoured cable
Ø 8 to 17mm, including 2 with plug
• 4 pillar terminals and 1 ground terminal:
Pillar terminal:
- 4 x 4mm² multifilament, 2 x 6mm² simple core
Ground terminal:
- 4 x 2,5mm² multifilament, 2 x 4mm² simple core
Weight and dimensions:
• 500g approx. (CG included)
• 195 x 158 x 73,5 mm

technical specifications

• ATEX approval: • Ex II 2 G
  • Ex II 2 D (T 58°C)
  • EEx e II T6/T5 ou EEx ia IIC T6/T5 (to be defined)
• Operating zones :
  Zones 1, 2, 21, 22 for gas and dust hazards
• Cable entries: terminal blocks
• Power supply :
  • Maximum voltage: 690V
  • Max current: 22A (2,5mm²), 30A (4mm²), 39A (6mm²)

REF. GHG-R1-GHG-R2
