ATEX cable gland for unarmoured cable - TRITON
Starting at $12.42
SKU
TRITON

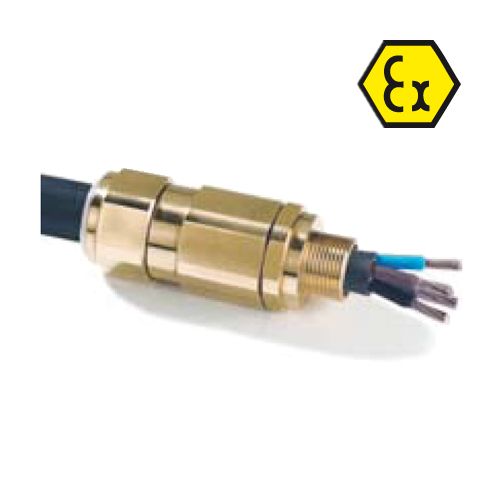

ATEX cable gland for unarmoured cable (for use in classified area): from M20 to M40 in nickel-platted brass. ATEX approval Ex II 2 GD - EExd IIC et EExe II Detailed description
technical specifications
- ATEX approval: • Ex II 2 GD - EExd IIC et EExe II
• IECEx - Other approvals:
UL - CSA - GOST R - GOST K – Contact us for others - Operating zones:
• Zones 1, 2, 21 and 22 for gas and dust hazards - Certified temperature:
from -60°C to +130°C - IP rating: IP66, IP67, IP68
Flood protection, DTS 01:1991 - Threading:
Metric thread 1.5 standard
Others upon request
Available from M20 to M130 - Operation:
• Internal diameter tightness (under armour) via compression seal
• External diameter tightness via compression seal
• Armour mooring
• Enables armour ground continuity
• Adapted to any armour type
• Inner Bedding Sealing Ring: Compensating Displacement Seal (CDS) to avoid cold flow on flame retardent cables. - Material:
Nickel-platted brass - Options :
• Brass, stainless steel or aluminium versions
• NPT or Pg thread
• Version with integrated O-ring around the thread - Accessories:
• Mass strip, gasket, nut, sleeve, protector, washer
REF. TRITON
