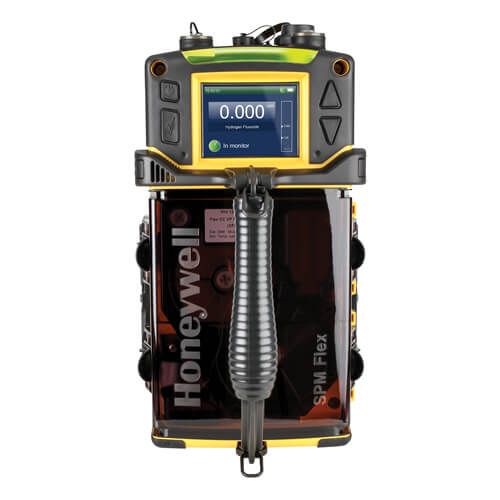

Single point Chemcasette tape-based gas detector - SPM Flex

The Chemcassette technology

Gases sampled by a sampling pump are sent to a strip of chemically impregnated paper. In reaction with the target gas, the paper strip will change color to be analyzed by a very powerful optical system. It is a very precise method for analyzing the most sensitive toxic gases, such as hydrides, mineral acids, oxidants or amines.

Optical toxic gas analysis system SPM FLEX

• Chemcassette patented technology insensitive to interference
• Integrated sampling pump - Rapid response for target gas detection
• Sensitivity to gas (in ppb) with physical proof
• Interchangeability of Chemcassettes
• Reduced maintenance and no dynamic calibration
• Digital concentration display
• Ethernet computer communication (MODBUS TCP / IP)
• USB port for data recovery
• More than 50 available gases (toxic, corrosive or pyrophoric)

A configuration for each application

The SPM FLEX toxic gas optical analysis system has many options ensuring reliable detection for each particular application:

• Fixed or portable version on battery
• The sampling pump capacity can go up to 30 meters for certain gases
• Possibility of adding a remote display and a remote alarm acknowledgment.

SPM FLEX technical specifications

• Detection technique: Chemcassette® detection system (chemical cassette with 7 specific gas families)
• Use: Device used as much as fixed detection or as portable monitor.
• Flow system: Automatic flow control with internal bypass system, sampling up to 30.48 m
• User interface: 4 large buttons, 3.5 ”color LCD screen, web server
• Alarm threshold: 2 levels generally defined at half the exposure limit value and when it is reached.
• Response time: 10 seconds
• Alarm indication: Visual (LED), Sound (90 dB siren at 1m)
• Output signals:
  - Concentration + fault alarm relay (SPDT)
  - Linear outputs 4-20 mA
  - Measurement signal feedback
  - Ethernet communication
  - USB 2.0 or later port
  - Digital screen
• Data recording: Up to 3 months (one measurement every 15 seconds without reading the gas, 1 measurement every second in presence of gas) - 1500 last events
• Relay ratings: 250 Vac at 6 A
• Operating temperatures: 0 to 40 ° C (basic device)
• Power supply: 100 - 240 Vac / 50 - 60 Hz
• Battery: Lithium ion Battery life: 6 hours depending on use
• Housing: fiberglass
• Protection index: IP65 NEMA 4X
• Dimensions / Weight: H x W x D: 312 x 183 x 163 mm / 4.1 kg
• Certifications:
  - UL 61010-1 / CSA-C22.2
  - IEC 61010-1
