Portable VOC analyzer - Gas chromatograph - X-PID 9500

Portable VOC analyzer with Innovative operation

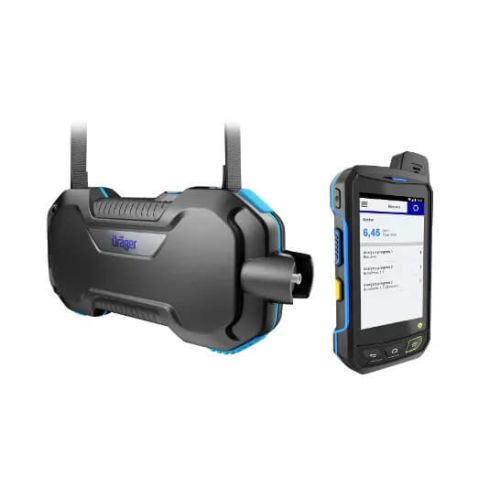

The Dräger X-PID 9500 consists of three elements: a measurement unit with sample pump comprising a gas chromatograph associated with a photo-ionization PID detector, an explosion-proof control unit with touch screen, and a mobile application for intuitive manipulation and control.

High gas selectivity for finer analysis

Most of PID detectors on the market only indicate the total VOC concentration without discriminating between the different gases. The X-PID 9500 "Analytical" selective measurement mode is based on a technology separating the various compounds present in gas mixtures. This makes possible a specific benzene measurement for example, even if other VOCs are also present at high concentrations, which significantly reduces false positives and false alarms.

Reliable performances even in difficult conditions

Influence of environmental factors, such as variable ambient temperature or high humidity on measurement results is minimized. Maintaining constant higher than ambient air temperatures, the sensor also separates water vapor from the targeted compounds. This guarantees reliable measurements in difficult conditions.

Fast and easy operation

The X-PID 9500 portable VOC analyzer requires no special preparation, it is very quickly operational after a short preheating phase. The selective measurement in "Analysis" mode only takes a few seconds or minutes depending on the preselected gases. No prior knowledge or advanced training is required.

Technical specifications

Measurement unit

Dimensions (w x h x d): 132 x 281 x 56 mm

Weight: Approx. 880 g

Integrated pump: to connect hose up to 10 m

Operating conditions:

• Temperature: 10 °C to +35 °C
• Pressure 700 to 1 300 mbar
• Relative humidity 10 % to 95 % HR

Protection: IP54

Stabilization phase: Approx. 10 min (might be longer in low temperatures)

Operating time: Usually 8 h (less if the ambient temperature is lower)

Certifications:

• ATEX : II 1G Ex ia IIC T4 Ga
• IECEx : Ex ia IIC T4 Ga
• CE marking : RED ( 2014/53/UE Directive) ATEX (2014/34/UE Directive) RoHS (2011/65/EU Directive)

Control unit

Smartphone ATEX pour zone 2/22

Certifications :

• ATEX : II 3G Ex ic IIC T4 Gc IP64
• IECEX : Ex ic IIC T4 Gc IP64
• Class I, Division 2, Groups A, B, C, D, T4

Dimensions : 137 x 72.1 x 20.8 mm

Weight: Approx. 290 g

Lithium-Ion 4 800 mAh battery

4" touch screen (can be used with gloves) high visibility, even in bright sunlight

Protection: IP68 (submersible, resistant to microparticles)
